Limit Switch Box Positioner

Materials
Body
Cast Aluminium
Shaft
Stainless Steel AISI300
External indicator
Polycarbonat
Cams
Stainless Steel AISI304
O-Ring
NBR
Datasheet
Limit switch box positioner datasheet

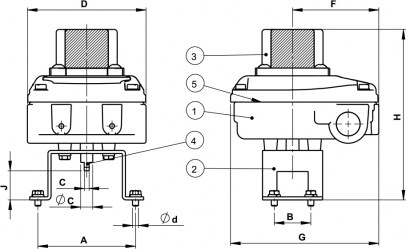

42_limit-swith-box-positioner-skica
42_limit-swith-box-positioner-slika
Preloader
Art. nr. A B C ⌀C D F G H J Weight (kg)
A046094 75,5-81,5 30 4 10 97 71 121,5 140 24 0,7

Notes

Limit switch box positioner is suitable to be mounted directly on pneumatic actuators.
ATEX execution is available upon request
