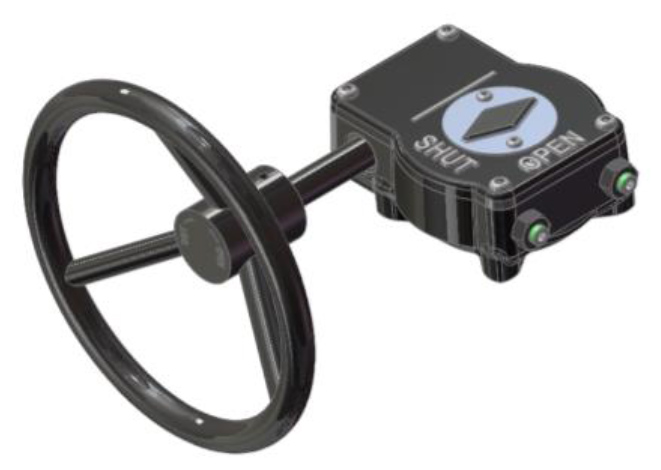

Manual Gearbox for Ball Valves

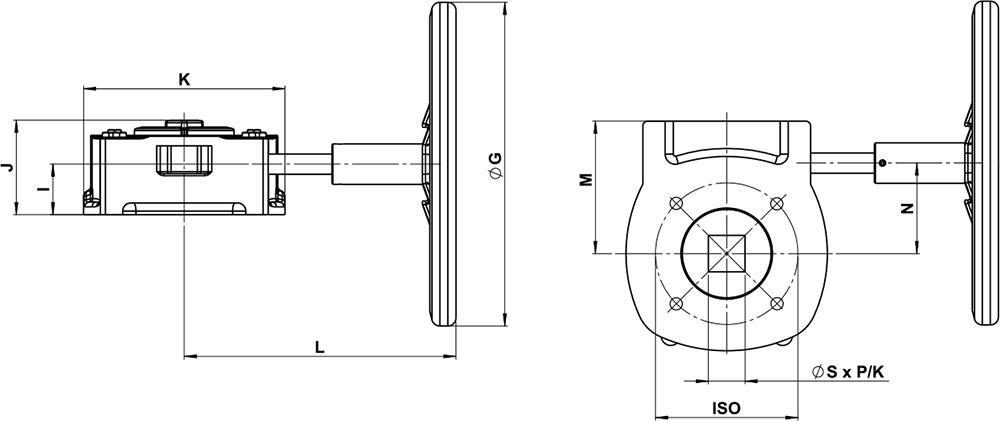

| Art. nr. | DN | I | J | K | L | M | N | ⌀G | ISO (top) flange | Shaft K | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A950996 | 50-100 | 28 | 60 | 136 | 200 | 88 | 60 | 200 | F07/F10 | K17 | 2,00 |
| A950997 | 125-250 | 44 | 86 | 150 | 210 | 105 | 67 | 250/310* | F10/F12 | K27/K30 | 4,30 |
| A951003 | 250-300 | 50 | 93,5 | 198 | 267 | 131 | 89,5 | 310 | F14 | K36 | 10,10 |
| A951021 | 350-400 | 56 | 119 | 253 | 330 | 158 | 56 | 400 | F16 | K46 | 11,20 |
Notes
*Dimension for DN 250.
