Nastavek za ključ - ISO

Materiali
Ohišje
Ogljikovo jeklo – ASTM A105
Tehnični podatki
Square cap for stem for ball valve KP - ISO datasheet

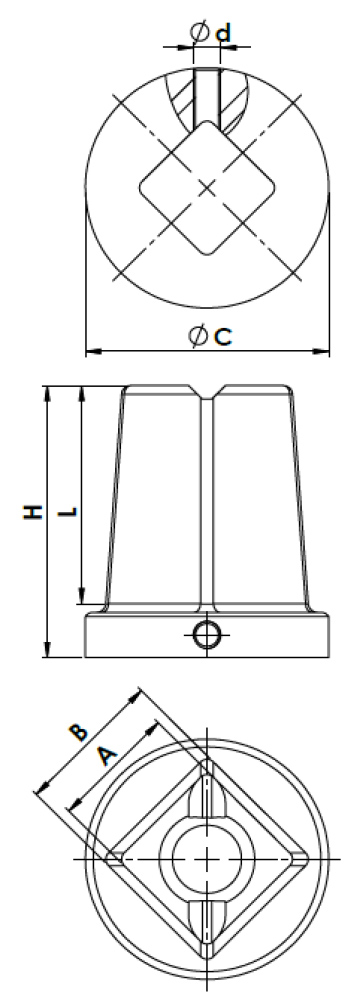

45_square-cap-for-stem-for-ball-valve-dn25-skica
Square Cap for Stem for Ball Valve KP - ISO DN25-DN50
DN25-DN50
45_square-cap-for-stem-for-ball-valve-dn65-skica
Square Cap for Stem for Ball Valve KP - ISO DN65-DN150
DN65-DN150

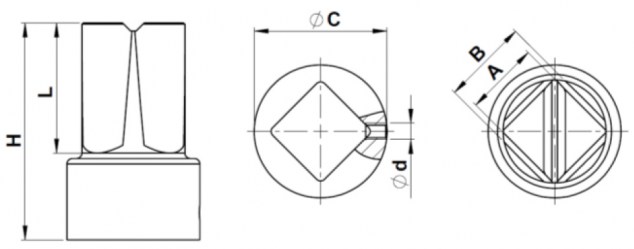

45_square-cap-for-stem-for-ball-valve-dn200-skica
Square Cap for Stem for Ball Valve KP - ISO DN200
DN200
Preloader
Št. art. DN A B H L ⌀C ⌀d Teža (kg)
A972260 25 27 32 55 48 38 M6 0,37
A972262 32-50 27 32 55 48 383 M6 0,36
A972264 65-100 27 32 55 48 8 M6 0,34
A972266 125-150 27 32 73 48 44 M6 0,45
A972268 200 27 32 80 48 49 M6 0,64
