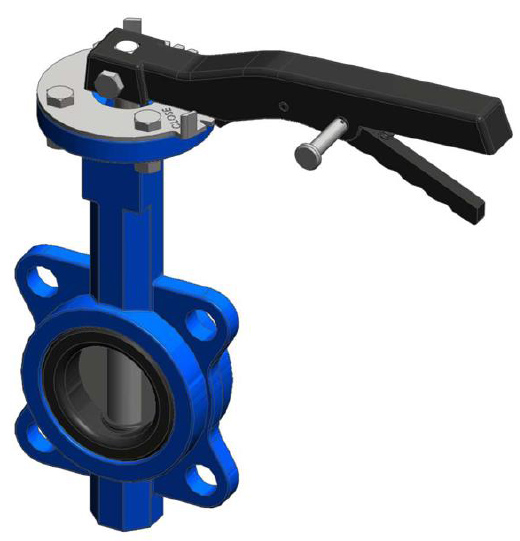

Zaporna loputa z ročico - medprirobnična LZM DI/SS PN16 120°C
DN40-DN300

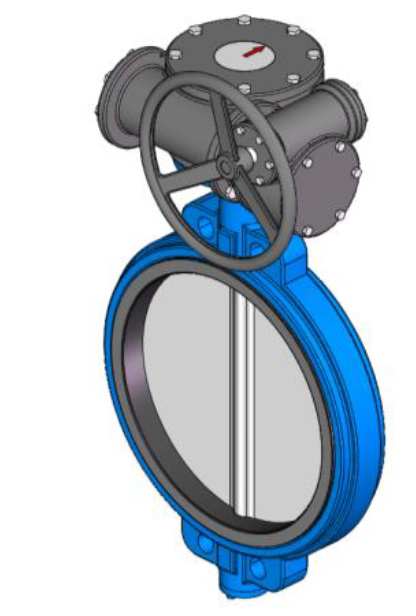

DN350-DN600
Delovna temperatura:
0°C/ 120°C

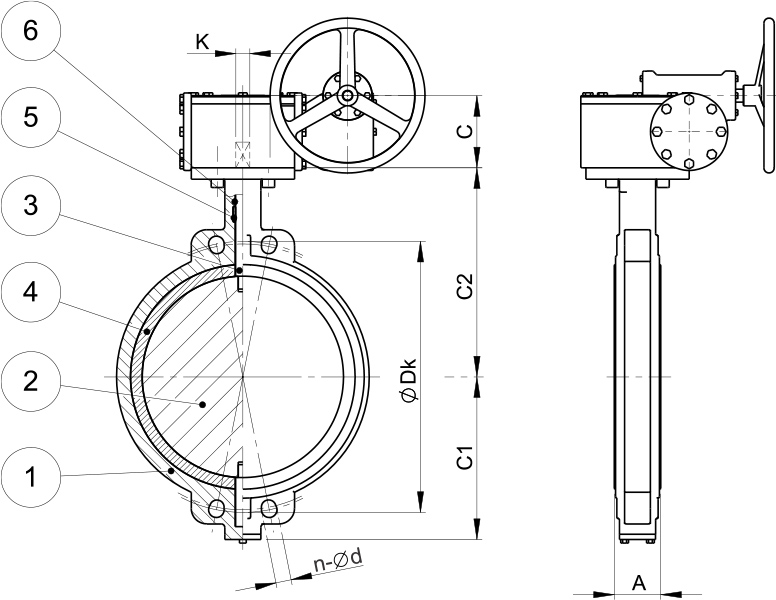

| Št. art. | DN | A | ⌀Dk | C1 | C2 | C | n-⌀d | α | ISO (zgornja) prirobnica |
Nastavek K |
Teža (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A029529 | 40 | 33,0 | 110 | 65 | 146 | 28 | 4-⌀19 | 45 | F07 | K11 | 3,0 |
| A029064 | 50 | 42,5 | 125 | 80 | 161 | 28 | 4-⌀19 | 45 | F07 | K11 | 3,8 |
| A029065 | 65 | 44,7 | 145 | 92 | 175 | 28 | 4-⌀19 | 45 | F07 | K11 | 4,4 |
| A029066 | 80 | 45,2 | 160 | 95 | 181 | 28 | 8-⌀19 | 45/22,5 | F07 | K11 | 5,0 |
| A029067 | 100 | 52,1 | 180 | 114 | 200 | 28 | 4-⌀19 | 22,5 | F07 | K11 | 7,0 |
| A029068 | 125 | 54,8 | 210 | 127 | 213 | 28 | 4-⌀19 | 22,5 | F07 | K14 | 8,0 |
| A029069 | 150 | 55,8 | 240 | 144 | 226 | 28 | 4-⌀23 | 22,5 | F07 | K14 | 10,0 |
| A029070 | 200 | 60,6 | 295 | 175 | 260 | 36 | 4-⌀23 | 22,5/15 | F10 | K17 | 16,2 |
| A029071 | 250 | 65,7 | 355 | 203 | 292 | 36 | 4-⌀28 | 15 | F10 | K22 | 24,8 |
| A029072 | 300 | 77,3 | 400*/410 | 242 | 337 | 36 | 4-⌀22*/28 | 15 | F10 | K22 | 37,0 |
| A042306 | 350 | 80 | 470 | 270 | 370 | 80 | 4-⌀26 | - | F12 | K22 | 52,0 |
| A042307 | 400 | 90 | 525 | 315 | 405 | 140 | 4-⌀30 | - | F14 | K27 | 101,0 |
| A042308 | 450 | 110 | 585 | 335 | 425 | 140 | 4-⌀30 | - | F14 | K27 | 119,0 |
| A042309 | 500 | 135 | 650 | 370 | 480 | 140 | 4-⌀33 | - | F14 | K27 | 168,0 |
| A042310 | 600 | 160 | 770 | 465 | 565 | 150 | 20-⌀36 | - | F16 | K36 | 198,0 |
Opombe
Lopute so primerne za vgradnjo med prirobnice PN10 in PN16.
*Za PN10.
