Planetary Gear Box for Ball Valves

Materials
Body
Carbon Steel
Datasheet
Planetary gear box for ball valves datasheet

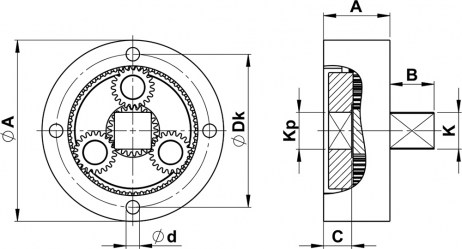

39_planetary-gear-box-for-ball-valves-skica
39_planetary-gear-box-for-ball-valves-slika
Preloader
Art. nr. ⌀A ⌀Dk ⌀d A B C Kp K Weight (kg)
A0901875 148 125 11 54 36 22 30 30 5,27

Notes

Planetary gear box is mounted between top ISO flange of the ball valve and underground extension.
